Description

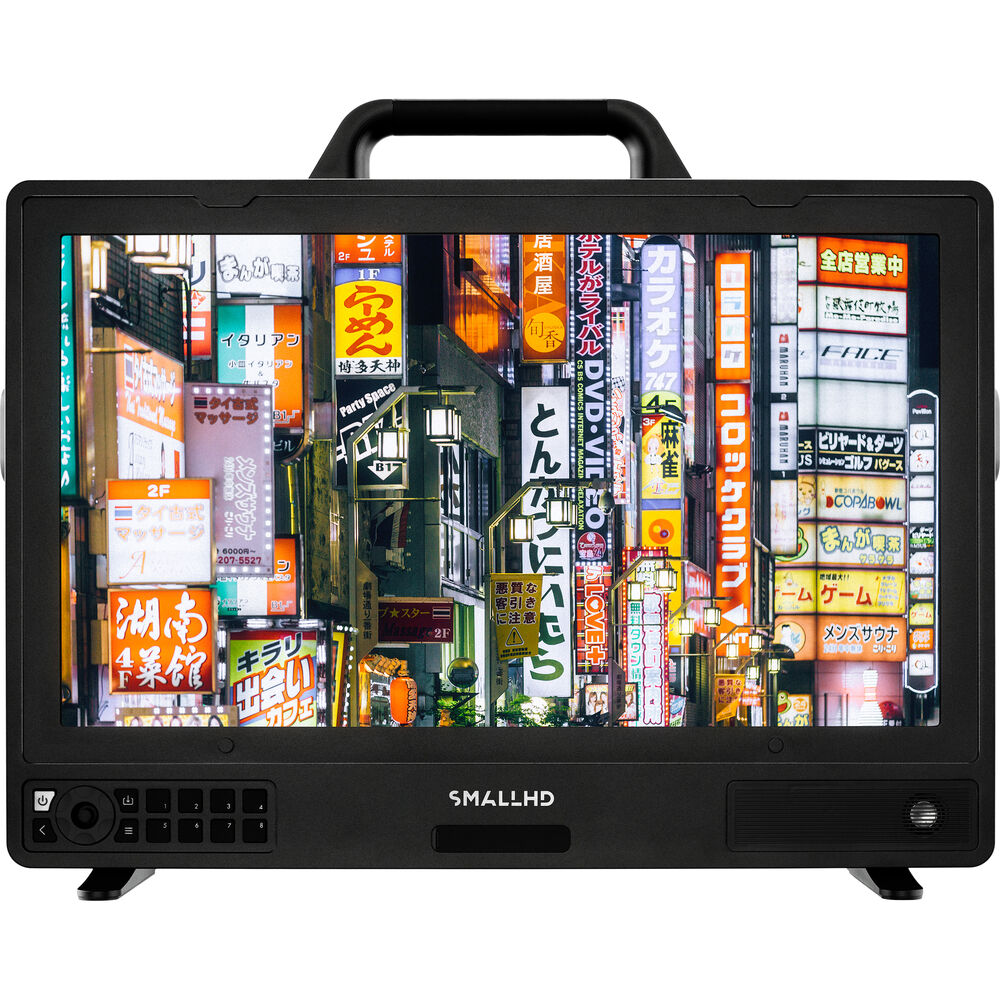

The SmallHD CINE 18 is a professional 4K monitor. It features a high-bright screen with 3840 x 2160 resolution. In addition, the crisp 4K image has 10-bit (8+2 FRC) colour intelligence. Finally, a 1300:1 contrast ratio, and 1100 cd/m² brightness for use outdoors.

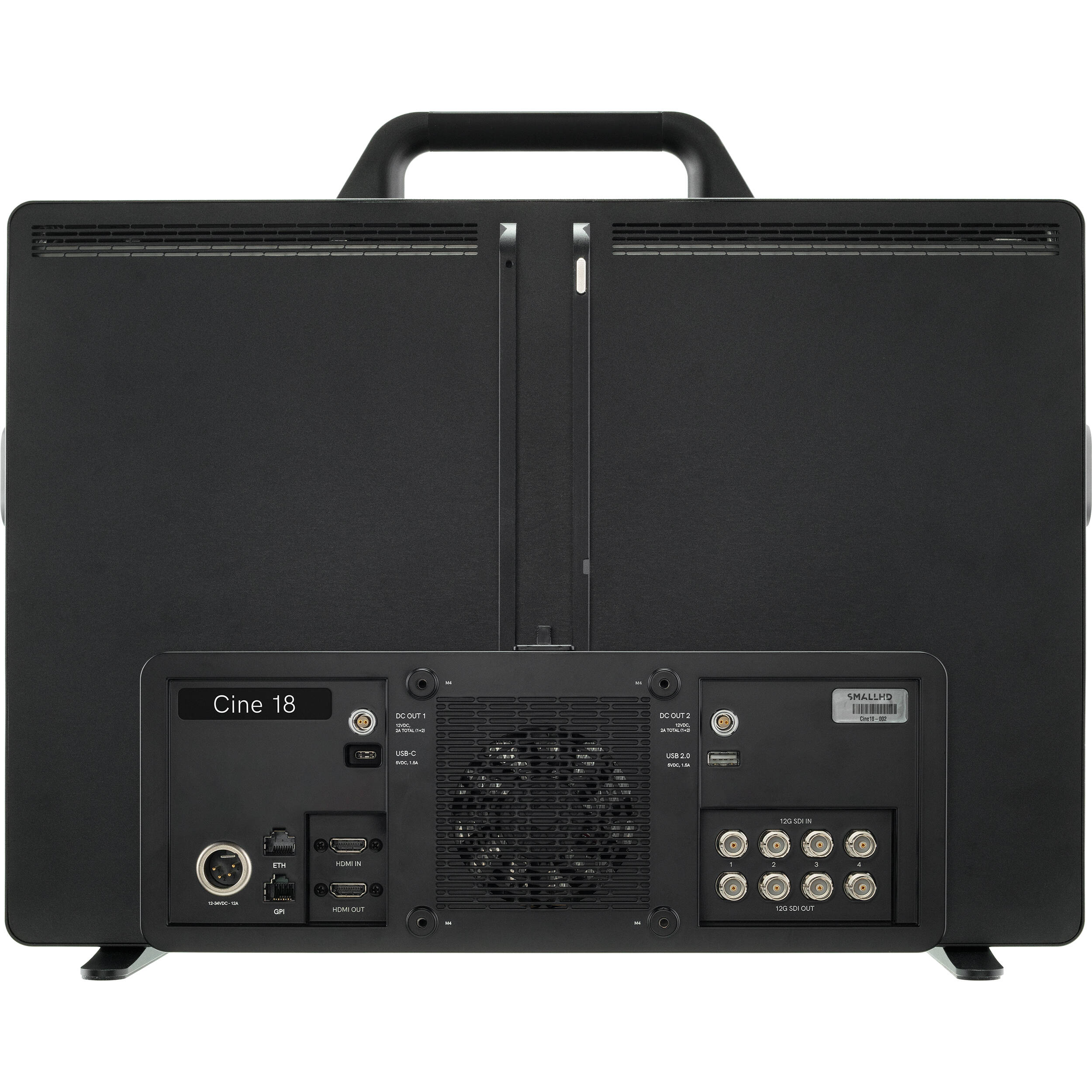

The Cine 18 has four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs. As well as one HDMI 2.0 input. SmallHD OS4.1, has a full-featured user interface. This includes configurable pages and page tabs. In addition, the SmallHD Cine 18 has a calibration wizard, false colour overlays, waveform, and pixel zoom. And finally, focus assist, peaking, and improved function buttons.
Mount the SmallHD monitor using the VESA pattern on the back. Alternatively mount with the 1/4″-20 threads around the top and sides of the monitor. You can power the monitor using a 4-pin XLR input. Or via the dual V-mount hot-swap battery plate. Also, load 3D LUT’s with the SD card slot.
The Cine 18 monitor also has an RJ45 Ethernet port and an RJ45 GPI port. Finally, use the 3.5mm headphone output to monitor embedded audio.
