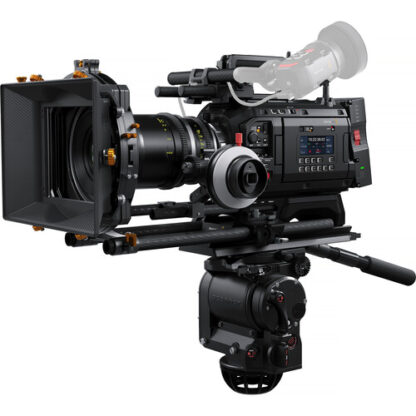

Blackmagic URSA CINE 12K LF

The Blackmagic URSA Cine 12K LF is a large-format 12K digital cinema camera. Available in EF, L, PL or LPL mounts. The camera records to CFExpress cards, or can be hired with an optional 8Tb media module.

Description

The Blackmagic URSA Cine 12K LF camera is a high-performance film-making tool. With a cutting-edge 12K Full-Frame sensor and a compact design, this camera provides an exceptional solution for high-resolution cinematography.

The URSA Cine 12K LF is engineered for versatility, allowing you to capture stunning detail with high dynamic range. The camera’s ability to shoot in 12K resolution gives you immense flexibility in post-production, from cropping to re-framing. This makes it ideal for feature films, commercials, and high-end productions.

Its large full-frame sensor provides remarkable depth of field control, while the camera supports high frame rates for slow-motion shots. Whether shooting in wide open landscapes or tight interiors, this camera ensures superb clarity and sharpness across the entire frame.

DOPs will appreciate the colour science of the Blackmagic URSA Cine 12K LF, which delivers rich, accurate colours. Thanks to its high dynamic range (HDR) capabilities, it ensures excellent contrast in scenes with varied lighting. This allows for precise control over both highlights and shadows.

The 12K resolution is ideal for future-proofing productions, allowing for extensive digital manipulation without loss of detail. The large sensor means that you can get the cinematic depth of field that is often a key creative choice.

The URSA Cine 12K has built-in ND filter. In addition, the ability to switch between ProRes 4444 XQ and Blackmagic RAW formats. This camera offers easy integration into any workflow. Plus, the URSA 12K’s intuitive interface lets DOPs focus on creativity, not technical challenges.

Technical Specifications of the Blackmagic URSA Cine 12K LF’s:

  • Sensor: 12K large format sensor with up to 14 stops of dynamic range
  • Resolution: 12,288 x 6,480 pixels (12K), 8K (8,192 x 4,320), 4K (4,096 x 2,160) recording
  • Dynamic Range: 14 stops, giving great flexibility in post-production
  • ISO: Dual native ISO 400 and 3200 for optimal low-light performance
  • Frame Rates: 60 fps at 12K, 120 fps at 8K, and up to 240 fps at 4K
  • Recording Formats: Blackmagic RAW, ProRes 4444 XQ, ProRes 422 HQ
  • Lens Mount: EF or PL mount (L-Mount and LPL-mount also available by request)
  • Built-in ND Filters: 2, 4, and 6 stops for control in varying lighting conditions
  • Connectivity: Dual XLR audio inputs, HDMI, SDI outputs, and more
  • Media: Dual CFExpress card slots. Optional Media Drive for highest resolution, frame-rate and compression options.

For assistant camera operators, the URSA Cine 12K LF camera ensures smooth operation during shoots. Its ergonomic design, lightweight build, and easy-to-use touchscreen interface make it easy to set up and adjust on the fly. Additionally, the camera features dual media slots, allowing for uninterrupted shooting.

The large viewfinder and comprehensive monitoring tools give ACs the clarity and precision needed when managing focus and framing.

Efficient Post-Production Integration

Finally, the Blackmagic RAW codec ensures high image quality with reduced file sizes, speeding up the post-production workflow. Whether you’re editing on DaVinci Resolve or another platform, the URSA Cine 12K LF integrates seamlessly. Its dynamic range and colour grading capabilities allow for easy colour correction and advanced visual effects work.

The Blackmagic URSA Cine 12K LF pushes the boundaries with high-resolution and high frame-rate shooting.

Features:

Key Features of the Blackmagic URSA CINE 12K LF:

  • Large Format Full-Frame 12K Sensor
  • 16 Stops of Dynamic Range
  • Blackmagic RAW up to 12K 3:2 Open Gate
  • Stream via RTMP/SRT via Wi-Fi/RJ45/USB-C
  • Built-In Clear, 2/4/6-Stop IRND Filters
  • Built-In Folding 5″ 1500 cd/m² Monitor
  • 12G-SDI Output, USB-C Expansion Ports
  • Timecode/REF, LEMO/Fischer Control Ports
  • 2 x Balanced 3-Pin XLR Audio Inputs
  • Optional EVF
