ARRI Signature Primes Lens Kit for Hire

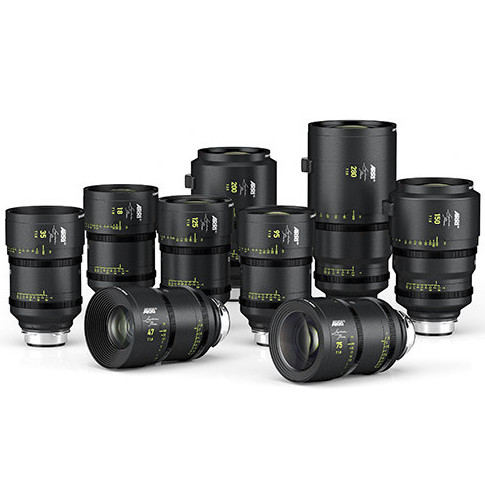

ARRI Signature Prime Lens Kit

The ARRI Signature Prime lenses are designed to meet the demands of  large-format / full-frame cameras. They each have a fast T1.8 maximum aperture and give a pleasant, organic look with attractive bokeh.

Focal lengths currently available include the 18, 25, 35, 47, 58, 75, 95mm. Additional focal lengths including the 15, 21, 29, 40, 125, 150mm available by request.

Categories: , , , , ,

Description

The ARRI Signature Primes are large-format prime lenses. For full-frame, large format-sensors and Super 35. Signature Primes produce organic images with pleasant, natural skin tones and a soft look for large format shooting. In addition, an attractive bokeh and fast aperture at T1.8 for shallower depth of field.

The smooth focus fall off allows highlighting of subject against the background. Also, the LPL-mount features ARRI LDS-2 lens-data compatibility. Consequently, this enables speedy lens setups and higher lens metadata rates.

Signature Primes are lightweight, constructed with magnesium housings with aluminium gear rings. Focus marks are in feet. It includes Anti-reflective coatings, light baffles and light traps to minimise internal flare. In addition, eleven iris blades produce smooth, round bokeh effects with minimal breathing. Finally, the Signature Primes are compatible with ARRI’s LDS-1 and Cooke’s /i Technology.

ARRI Signature Prime Showreel:

Tech Talk: ARRI Signature Primes:

Features:

Features of the ARRI Signature Primes:

  • Covers Large-Format / Full-Frame Sensor Size (as well as Super-35, Super 16 etc)
  • ARRI LPL LDS-2 Mount
  • Magnetic Rear Filter Holder
  • T1.8 to T22 Aperture Range
  • Matches Signature Primes & Zooms
  • 11-Blade Iris, Anti-Reflective Coatings
  • Geared Focus & Aperture Control Rings
  • Magnesium & Aluminium Construction
  • Marked in Feet
  • Light Weight

ARRI Signature Prime Tech Specs:

 12mm T1.815mm T1.818mm T1.821mm T1.8
Lens MountLPLLPLLPLLPL
ApertureT1.8 – T22T1.8 – T22T1.8 – T22T1.8 – T22
MOD from sensor plane (minimum marked distance)0.35 m / 14“0.35 m / 14“0.35 m / 14″0.35 m / 14″
MOD from lens front 0.07 m / 2.6″0.1 m / 4.3″0.13 m / 5.1″0.13 m / 5.1“
Magnification ratio at MOD (Paraxial)1:7.01:10.31:9.21:8.2
Angle of view
H – V – D
for LF Open Gate		114.2° / 94.0° / 124.0° 102.0° / 81.2° / 112.9° 91.4° / 71.0° / 102.6°82.7° / 63.0° / 94.0°
Front diameter134 mm156 mm114mm114mm
Weight (lens only)2.8 kg / 6.2 lb2.8 kg / 6.1 lb2.0 kg / 4.4 lb1.9 kg / 4.2lb
——————————————————————————————————————
 25mm T1.829mm T1.835mm T1.840mm T1.8
Lens MountLPLLPLLPLLPL
ApertureT1.8 – T22T1.8 – T22T1.8 – T22T1.8 – T22
MOD from sensor plane (minimum marked distance)0.35 m / 14″0.35 m / 14″0.35 m / 14″0.35 m / 14″
MOD from lens front 0.13 m / 5″0.13 m / 5″0.13 m / 5″0.13 m / 5″
Magnification ratio at MOD (Paraxial)1:7.11:6.41:5.41:4.8
Entrance pupil position (related to image plane, in direction to object)177.6 mm / 7.00“165.8 mm / 6.53“162.1 mm / 6.38“159.3 mm / 6.27“
Angle of view
H – V – D
for LF Open Gate		73.0° / 54.4° / 84.0°65.1° / 47.9° / 75.7°55.5° /40.2° / 65.3°49.3° / 35.4° / 58.3°
Front diameter114mm114mm114mm114mm
Weight (lens only)1.9 kg / 4.2lb1.8 kg / 4.0lb1.7 kg / 3.7lb1.8 kg / 4.0lb
——————————————————————————————————————
 47mm T1.858mm T1.875mm T1.895mm T1.8
Lens MountLPLLPLLPLLPL
ApertureT1.8 – T22T1.8 – T22T1.8 – T22T1.8 – T22
MOD from sensor plane (minimum marked distance)0.45 m / 18“0.45 m / 18“0.65 m / 26“0.85 m / 2‘ 9“
MOD from lens front 0.23 m / 9.0“0.23 m / 9.0“0.43 m / 17“0.63 m / 2‘ 1“
Magnification ratio at MOD (Paraxial)1:6.31:5.41:7.21:7.9
Entrance pupil position (related to image plane, in direction to object)155.8 mm / 6.13“143.9 mm / 5.66“115.5 mm / 4.55“85.4 mm / 3.36“
Angle of view
H – V – D
for LF Open Gate		42.6° / 30.4° / 50.8°34.9° / 24.8° / 41.8°27.5° /19.3° / 33.3°21.6° / 15.3° / 26.5°
Front diameter114mm114mm114mm114mm
Weight (lens only)1.8 kg / 4.0lb2.0 kg / 4.4lb1.9 kg / 4.2lb1.9 kg/4.2lb
——————————————————————————————————————
 125mm T1.8150mm T1.8200mm T2.5
Lens MountLPLLPLLPL
ApertureT1.8 – T22T1.8 – T22T2.5 – T22
MOD from sensor plane (minimum marked distance)1 m / 3‘ 4“1.5 m / 5‘1.8 m / 6‘
MOD from lens front 0.78 m / 2‘ 7“1.25 m / 4‘ 2“1.54 m / 5‘ 1″
Length from flange178 mm / 7.01“208 mm / 8.19“218 mm / 8.58“
Magnification ratio at MOD (Paraxial)1:7.01:9.01:8.3
Entrance pupil position (related to image plane, in direction to object)52.6 mm / 2.07“54.5 mm / 2.15“34.9 mm / 1.37“
Angle of view
H – V – D
for LF Open Gate		16.6° / 11.6° / 20.2°13.9° / 9.7° / 16.9°10.4° / 7.3° / 12.6°
Front diameter114mm114mm114mm
Weight (lens only)2.3 kg / 5.1lb3.25 kg/7.3lb3.1 kg / 6.13lb
